PETG Film SLEEVEMAKER-GM50 For Hot Air And Steam Tunnels

PETG Film SLEEVEMAKER-GM50 For Hot Air And Steam Tunnels

Disclaimer：The following information is based on the knowledge and experience we have actually mastered. We strongly recommend that users thoroughly and carefully test products before using them to verify whether they are suitable for users' own process conditions and uses, and suggest that we consult with our technicians. The above technical information is not regarded as any guarantee of us, and therefore,we do not bear any responsibility.

PREV：Strong Contraction PETG Film SLEEVEMAKER-GM45
NEXT：No next product
Contact Us

Details：

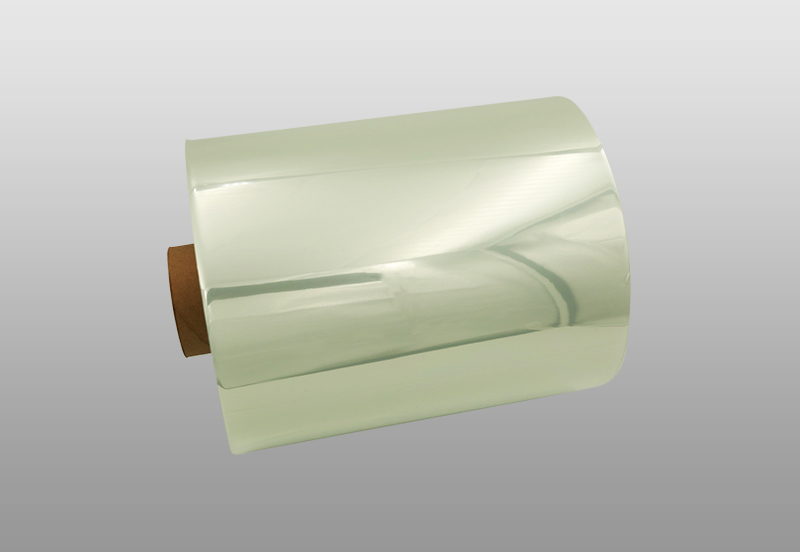

SLEEVEMAKER-GH is a heat-shrinkable polyester film with excellent shrinking characteristics. It’s applicable in sleeves, suitable for hot air and steam tunnels, and can meet demands on different packaging products, shapes, shrinking requirement.

Properties

Unit

Spec.

Test Method

Typical thickness

μm

50±2

ASTM D 1400

Density

g/c㎡

1.32

ASTM D 1505

Tensile strength

-Transverse Direction(TD)

-Machine Direction(MD)

Psi



≥29000

≥7975

ASTM D-882

Elongation at break

-Transverse Direction(TD)

-Machine Direction(MD)

%



≥55

≥470

ASTM D-882

Shrinkage

-Transverse Direction(TD)

-Machine Direction(MD)

%



55-70

≤5

Chancing Method

(85℃,10 Sec.in water)

Haze

%

≤5

ASTM D-1003

Gloss@ 60° degrees

%

≥87

ASTM D-523

Coefficient of friction



0.4-0.6

ASTM D 1894

Wetting  Tension

mN/m

≥40

ASTM D2578

SLEEVEMAKER-GH, Shrink Curve
